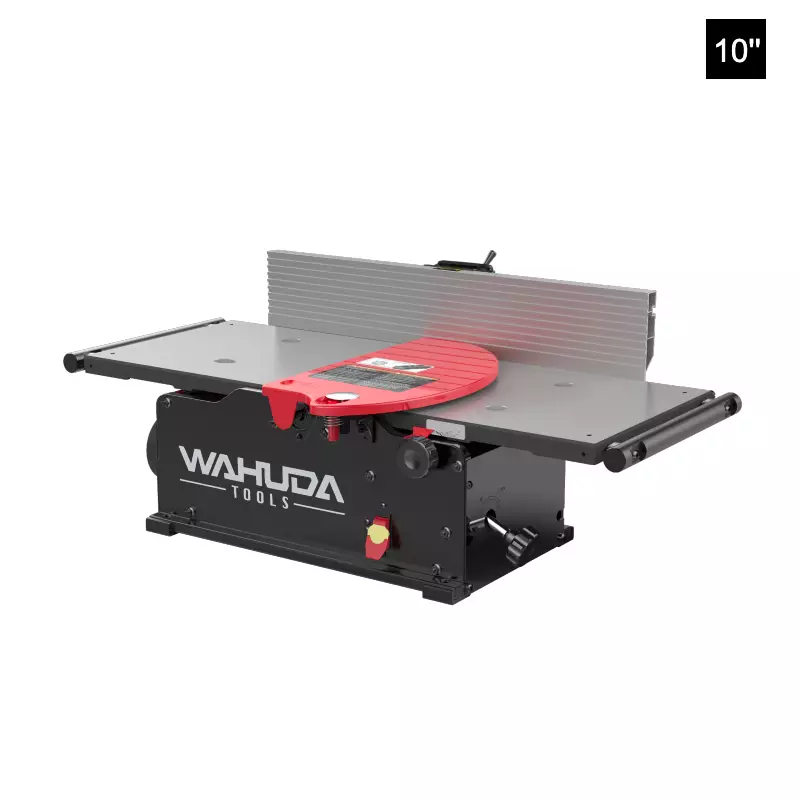

10″ Benchtop Jointer

10" Benchtop Jointer

(8 customer reviews)

$699.99

  • No More Cupped Woods. Create perfectly flat surfaces and edges quickly and hassle-free with the Wahuda Jointers. Experience smoother and accurate cuts even on tough or figured woods w/ Wahuda Tools.
  • Cutting-Edge Sharpness. Our spiral cutterhead has 4-sided carbide inserts for sharper and quieter cutting precision. The standard blade size also allows for a cost-effective and simple replacement.
  • Capable Steady Performance. Wahuda Jointers are powered with a 120V motor with a fixed 12,000 RPM. They are fully capable of handling edging, jointing, flattening, or tapering no matter the surface!
  • Solid Built For Your Convenience. Our adjustable and expandable cast iron tables enhance stability even when working on longer, larger pieces, with a fence that tilts from 90 &135​° for ​versatility.
  • Perfect For Job Sites Or Small Shops. Depending on your needs or your shop’s size, Wahuda Tools have 6, 8, and 10-inch wood jointers that will do the job right. They’re conveniently movable, too!
Add to cart
SKU:  50110CC-WHD Category:

Share

Share on facebook
Share on twitter
Share on whatsapp

360° product viewer

0%

    Features & Specs

    10-Inch Woodworking Jointer

    If our 6″ or 8″ bench top jointers do not quite have the width capacity you are looking for, we’d like to introduce our new 10″ WAHUDA spiral style bench top jointer model 50110CC-WHD.

    As with our other jointers, our new 10″ model is very capable of milling stock in a small pro shop. It’s also manufactured to tight tolerances in a certified ISO 9001 factory and is CSA approved for performance and your safety.

    With the cast iron tables, our newest jointer weighs about 74 lbs, making it easily maneuvered around your shop or jobsite. The cast iron tables also provide better stability during operation and are less prone to scratching. Table leveling for coplanar, if ever needed, is easily achieved via set screws installed in each table. Even the pull out extensions are easily adjustable for coplanar if necessary. With the 33 1/2″ total table length end to end, extendable to 51″ of usable support with the table extensions pulled out, machine depth of around 22″, and total height of about 13 3/8″, it will fit in just about the same footprint as the 8″ jointer.

    The newly incorporated spiral style cutterhead, manufactured with the same heavy duty aluminum extrusion over steel inner shaft, now provides you the cutting edge sharpness retention from having 20 carbide 4-sided insert tips installed. While being quieter than the straight knife cutterhead noise you have had to endure, you also get the smooth finish on your stock you’ve been looking for from the spiral design … even on figured woods. And only having to loosen or remove one mounting screw on each insert, provides extremely quick tip rotation or replacement if the insert becomes nicked. This keeps your downtime to a minimum and your project on time.

    Our new 10″ jointer has some of the same features as our previous highly rated models. It has a maximum capacity of 10″ face planing width and 1/8″ maximum depth of cut and a 4″ included dust port with 2 1/2″ adapter for better chip evacuation. This model has a 4 3/8″ high by 24″ long extruded aluminum fence which can be easily tilted from 90 to 135 degrees with ease. It has a 120V 12 amp AC motor which provides ample machining power. Included are the push blocks, the tools you need to properly set up and adjust the machine, and a T-Torx wrench to rotate or replace the insert tips.

    If you feel our new 10″ jointer is a bit of overkill for your needs, or a little too large of footprint for your available shop space, check out our 6″ and 8″ bench top jointers.



    Features

    • Powerful 12 Amp 120V motor
      Newly Incorporated Spiral Style Cutterhead with 20 4-sided carbide Inserts
      Long Extruded Fence with 90 to 135 Degree Tilt
      Adjustable and expandable table extensionsIf you’re looking for a little bit more length or width capacity than our 6″ or 8″ jointers have, take a look at this 10″ jointer. This compact benchtop jointer packs a lot of punch. And as small power jointers go, it’s at the top of its class. It has a 33 1/2″ table length, end-to-end, with table extensions allowing it to increase in length to 53 1/2″. It’s about 22” deep, 13 3/8” high, and weighs about 74 lbs, making it easy to move around in the shop or out on the job site.

      The new spiral cutterhead features 20 4-sided carbide-tipped inserts that can quickly and easily be rotated to a new edge if an old one gets chipped or otherwise damaged. The 120V 12 amp motor provides all the power you’ll need.

    Warranty

    2 YEAR LIMITED WARRANTY

    WAHUDA warrants its machinery to be free of defects in workmanship and materials for a period of two (2) years from the date of the original purchase by the original owner.

    This warranty applies to products sold in United States only. The warranty does not apply to any product used for professional or commercial production purposes nor for industrial or educational applications. Such cases are covered by our 1 year Limited Warranty with the Conditions and Exceptions.
    After inspection by an Authorized Service Center or our agent, Warranty does not include failures, breakage or defects deemed to have been directly or indirectly caused by or resulting from improper use, lack of or improper maintenance, misuse or abuse, negligence, accidents, damage in handling or transport, or normal wear and tear of any part or component considered a consumable.  Examples of consumables are inserts, knives, or wear items such as drive belts, bearings, or brushes.  Additionally, Warranty is void if repairs or alterations are made to the machine by an unauthorized service center without the direct consent of WAHUDA.
    To file a Warranty Claim, call toll free 877-568-8879 or email techservices@wahudatools.com . Warranty applies to the original buyer only and cannot be transferred.  Your machine’s date of purchase and serial number have already been registered with WAHUDA when shipped.  If you purchased your machine from one of our authorized dealers, please go online at  www.wahudatools.com and register your machine online.  Therefore, you will only need to provide your full name when contacting WAHUDA.
    The defective units should be returned Freight Prepaid to WAHUDA’s Authorized Service Center for inspection.  If the Warranty Claim is considered to be invalid due to exclusions listed above, WAHUDA will, at your direction, dispose of or return the product.  In the event you choose to have the product returned, you will be responsible for the handling and shipping cost of the return.
    WAHUDA furnishes the above warranties in lieu of all other warranties, express or implied.  WAHUDA shall not be liable for any special, indirect, incidental, punitive, or consequential damages, including without limitation to loss of profits arising from or related to the warranty, the breach of any agreement or warranty, or the operation or use of its machinery, including without limitation damages arising from damage to fixtures, tools, equipment, parts or materials, direct or indirect loss caused by any other part, loss of revenue or profits, financing or interest charges, and claims by any third person, whether or not notice of such possible damages has been given to WAHUDA.  WAHUDA is not responsible for damages of any kind for any delay by or failure of WAHUDA to perform its obligations under this agreement or claims made as a subject of a legal proceeding against WAHUDA more than one (1) year after such cause of action first arose.
    The validity, construction and performance of this Warranty and any sale of machinery by WAHUDA shall be governed by the law of the State of Tennessee, without regard to conflicts of law’s provisions of any jurisdiction.  Any action related in any way to any alleged or actual offer, acceptance or sale by WAHUDA or any claim related to the performance of any agreement including without limitation this Warranty, shall take place in the federal or state courts in Shelby County, Tennessee.
    WAHUDA reserves the right to change the specifications of its machines without prior notice.



    Product Size

    MOTOR
    Amps/ Volts
    Speed
    CUTTERHEAD
    Diameter
    Inserts
    Max Depth of Cut
    Max Cutting Width
    Max Stock Thickness
    Feed Rate
    DIMENSIONS
    Overall Size
    Tables
    Fence Size
    Dust Port
    Weight
    Base
    WARRANTY
    MOTOR
    Amps/ Volts
    Speed
    12 AMP / 120V, AC
    12,000 RPM

    Product Size

    MOTOR
    Amps/ Volts
    Speed
    12 AMP / 120V, AC
    12,000 RPM
    SPIRAL CUTTERHEAD
    Diameter
    Inserts
    Max Depth of Cut
    Max Cutting Width
    Max Stock Thickness
    Feed Rate
    2"
    20 Four-sided Inserts carbide
    1/8"
    10"
    --
    --
    DIMENSIONS
    Overall Size
    Tables
    Fence Size
    Dust Port
    Weight
    Base
    WARRANTY
    35" X 22" X 13 3/8"
    10" x 33 1/2" Extendable to 53.5"
    4 3/8" X 24"
    2 1/2" and 4"
    73.4 lbs.
    19" X 13 1/2"
    2 YEARS

    Video

    Reviews

    (8 customer reviews)
    Reviews
    1. Great deal
      I hadn’t ever seen a jointer over 6” that was 110v. I build furniture for a living and have a larger 5hp jointer at my shop. I bought this one for home use. I wouldn’t use it to joint 8’ long boards but for home projects it is great. The fence is trash but you can build a plywood one pretty easily. There are adjustments for the bed angles but mine came in already coplaned. I’ve only ran walnut through it but some of the pieces were 9” wide and it went fine. It’s not professional grade but it’s well worth the price.

      July 25, 2021

    2. What a beast!
      I upgraded from an older 6 inch Cutech (still worked great after many board feet) to the Wahuda 10 inch with cast iron tables and outrigger extensions.

      I’m very pleased with this machine.

      Tuning the tables was easy thanks to the video guide. A full size 4 inch dust port is great with a dust right quick connect.

      The machine leaves a glass surface and chows through 6 inch hard maple like it was nothing. Of course feed rate and a reasonable depth of cut are keys to success.

      I’m really excited about all of the capacity on this jointer. 10 inch!! In a bench top!! I doubt I will be using my planer sled very much, if at all.

      I do wish the fence were cast instead of aluminum but the set screws seem to be more reliable with this model.

      The outriggers are a huge upgrade feature. Next best thing to longer tables and again they were easy to adjust to be on the same plane as the tables thanks to that video.

      4 sided cutters is another nice upgrade.

      My material comes of the machine dead flat and ready for my planer, also purchased from this company.

      Great machine for a great value

      June 23, 2021

    3. Amazing value!
      Ordered Sunday evening, received Tuesday afternoon via free shipping. Cast iron beds were precisely flat & coplanar. Fence assembly hardware is imprecise, can leave it slightly tilted up/down or forward/rearward, but it is easily set to perpendicular which is what matters. Extensions could easily be set coplanar with beds, but not at both extended and retracted positions. (BTW, stuck extension rods can be cured simply by rotating them when the adjustment screws are loosened.) Removable carbide cutters leave a slick, smooth surface. To get this superb 10″ jointer with rotatable, replaceable carbide cutters for just $700 is truly incredible. Thank you, Wahuda!

      March 9, 2021

    4. Excellent Machine
      I use this to mill rough sawn hardwood (cherry, maple, etc) logs into boards. It works like a champ. Took about 2 hours to get it set up, but after that, I’ve had nothing but phenomenal results. I made a video review on YouTube on the Block2Boxes channel if you’re interested in seeing the unboxing and full review of it. Great product, Wahuda!

      February 19, 2021

    5. Everything and More
      I bought the 10 inch to face off 9 to 10 inch wide 24 inch long rough split quartersawn billets of Englemann Spruce. Wahuda tech said there would be no problem – and they were right . The 12 amp motor is more than adequate to handle my billets.
      I also ran thru some 50 year old highly figured Big Leaf Maple chain sawn billets and this machine handled them easily – Very smooth cut on the figured Maple.

      January 17, 2021

    6. Great Tool
      I ordered the 10″ Jointer when they first became available. It took about 3 hours to set the tables up properly (I’m picky) I had two very minor issues that customer service fixed right away. The tool works to my expectation. for the price I haven’t seen anything better.

      December 29, 2020

    7. Perfect for what I need
      I had been considering the 8” version for a while. The time was finally right to make a purchase and I was pleasantly surprised to learn about the 10” option. I mainly make cutting boards and smaller decorations that do not require pieces over 4-5 feet usually – so this jointer works great for my needs. Setup took me a few hours. I used a 24” precision straight edge (0.001 precision) and feeer gauges. There is a 0.004 low spot on the outfeed table against edge nearest the fence. It’s a few inches from the cutter head so I don’t think it will be any issue. I did have to adjust both of the extension arms. Both were too low. I spent today running a bunch of 6” wide cherry, maple, and walnut through it. It powered through it all with no issue at all. I have a big 9” wide piece of hard maple that I’m going push through it soon. That will be the true test. All in all I’m very happy with it.

      December 5, 2020

    8. 10″ Benchtop Jointer
      This is the only 10″ benchtop jointer that I know of on the market. It took a few hours to get it dialed in as it was not set up properly from the factory. Make sure you get yourself a good level and some feeler gauges. Once dialed in though it has been working great for face jointing and pieces up to about 4′ long. Exactly what I needed for table legs and coffee tabletops. Have to go a little slower than when using a true helical head, but it produces a smooth finish with the right feed speed.

      November 17, 2020
